  • ISCAR SOF45 8/16-D4.0-12-1.25R Milling Cutter 45.0° 4.000 Diameter Face Mill 1.250 1.480 OAL 12 Flute

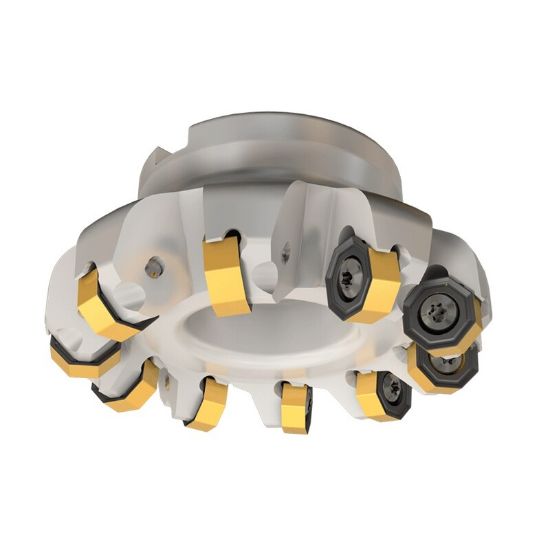

Picture of ISCAR SOF45 8/16-D4.0-12-1.25R Milling Cutter 45.0° 4.000 Diameter Face Mill 1.250 1.480 OAL 12 Flute

ISCAR SOF45 8/16-D4.0-12-1.25R Milling Cutter 45.0° 4.000 Diameter Face Mill 1.250 1.480 OAL 12 Flute

ANSI: SOF45 8/16-D4.0-12-1.25R

ISO: SOF45 8/16-D4.0-12-1.25R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104872
Delivery date: 3-5 days
$1,305.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Round Milling, Feed Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cut Dia Min 4.0000 101.60MM
Cut Dia Max 4.4090 111.99MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 1.4800 37.59MM
Depth Of Cut Max 0.6300
Cutter Dia 4.0000 101.60MM
Flutes/Inserts 12
Cutting & Machining Properties
Insert Style SN,ON,RX,RN
Cool Sply Type External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Multi
Fasteners & Connectors
Insert Screw 7000219
