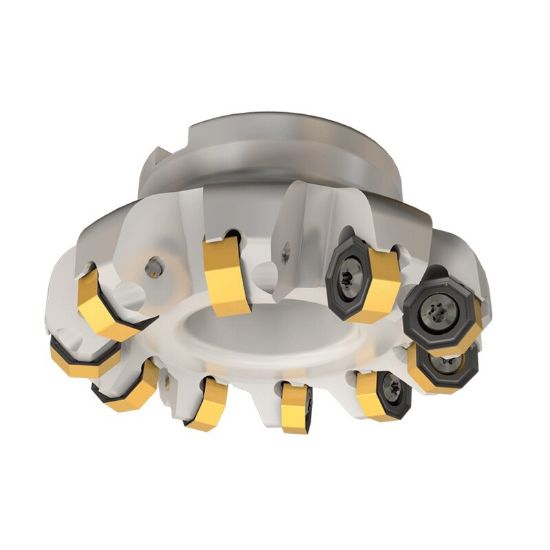

ISCAR SOF45 8/16-D2.5-08-1.00R Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.301 OAL 8 Flute

ANSI: SOF45 8/16-D2.5-08-1.00R

ISO: SOF45 8/16-D2.5-08-1.00R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104870
Delivery date: 3-5 days
$792.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Application Feed Milling, Round Milling, Face Milling
Shipping State Texas
Insert Application Semi Finishing, Roughing
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.1140
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 2.9090 73.89MM
Flutes/Inserts 8
Overall Len 1.3010 33.05MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Cutting & Machining Properties
Cool Sply Type External
Coolant Thru No
Insert Style SN,ON,RX,RN
Insert Shape/Cutter Pocket Shape Multi
Fasteners & Connectors
Insert Screw 7004916
