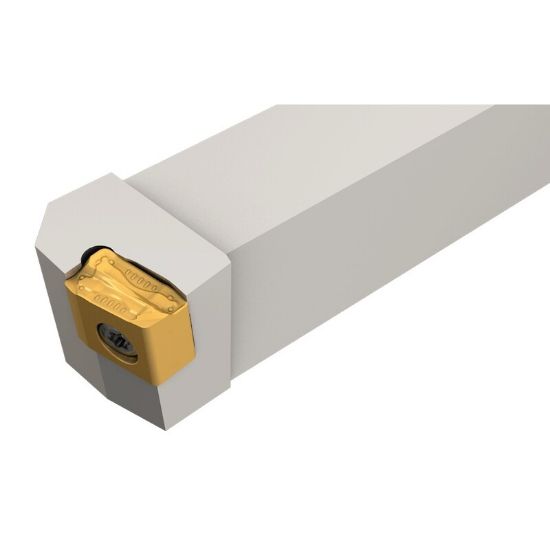

Picture of ISCAR SLLNL 16-16HF Turning Stick Tool On Edge Insert 1.000 Square

ISCAR SLLNL 16-16HF Turning Stick Tool On Edge Insert 1.000 Square

ANSI: SLLNL 16-16HF

ISO: SLLNL 16-16HF

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3602248
Delivery date: 3-5 days
$141.12

Details

FEEDTURN screw clamped toolholders for Fast Metal Removal in longitudinal turning: F max=.094 ipr, Ap max= .094 inch.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Tool Width 1.0000
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Lead Angle 12°
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Inter/Extern External
Insert Style LN
Insert Shape/Cutter Pocket Shape Rectagonal
Hand R/L Left
