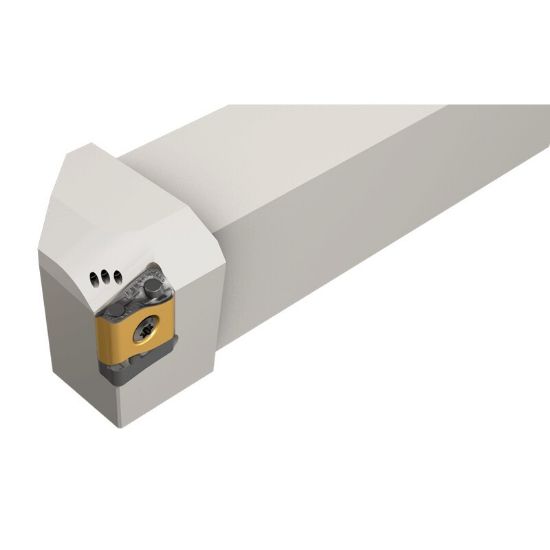

ISCAR SLANR 20-15 TANG-JHP Turning Stick Tool On Edge Insert 1.250 Square

ANSI: SLANR 20-15 TANG-JHP

ISO: SLANR 20-15 TANG-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603318
Delivery date: 3-5 days
$303.36

Details

Screw-clamped tools with channels for high pressure coolant, carrying the LNMX tangentially clamped inserts. Recommended for heavy longitudinal and face turning.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 93°
Tool Width 1.2500
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 15
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Style LN
Hand R/L Right
Inter/Extern External
Insert Shape/Cutter Pocket Shape Rectagonal
