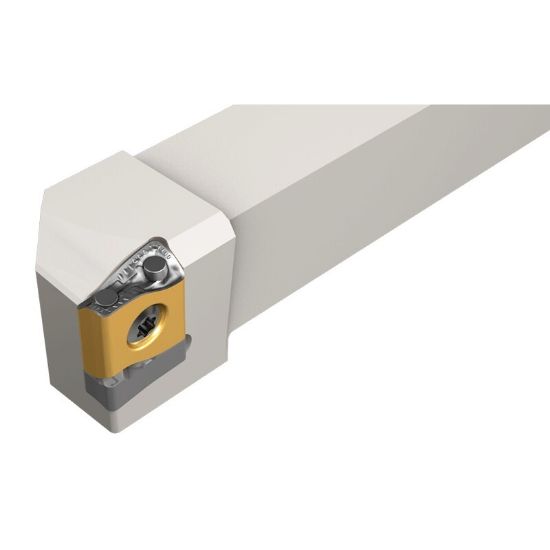

ISCAR SLANL 16-15 TANG Turning Stick Tool On Edge Insert 1.000 Square

Name: ISCAR SLANL 16-15 TANG Turning Stick Tool On Edge Insert 1.000 Square
SKU: ISC3602118
Price: 151.68 USD
Availability: InStock

ANSI: SLANL 16-15 TANG

ISO: SLANL 16-15 TANG

Manufacturer: ISCAR

SKU: ISC3602118

Delivery date: 3-5 days

$151.68

Qty:

Details

Screw-lock tools carrying the LNMX.. tangentially clamped inserts. Recommended for heavy longitudinal and face turning.

Products specifications

Attribute name	Attribute value
General Product Information
Insert Application	General Purpose
Insert Type	Negative
Application	Ext.Turning
Package Size	1
Shipping State	Texas
Insert/Tool	Tool
Made In USA	No
Dimensional Specifications
Tool Material	Steel
Machine Side Connection Type	Stick Tool
Shank/Pilot Dia	1.0000 25.40MM
Lead Angle	93°
Machine Side Connection Size	1.0000 25.40MM
Tool Width	1.0000
Insert Size Ic	15
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape	Rectagonal
Inter/Extern	External
Insert Style	LN
Hand R/L	Left
