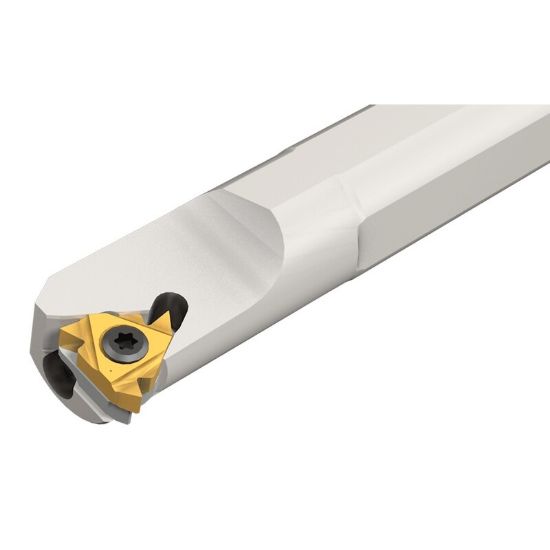

Picture of ISCAR SIL 0265 K08 Threading Boring Bar Iso Thread Boring Bar 0.625

ISCAR SIL 0265 K08 Threading Boring Bar Iso Thread Boring Bar 0.625

ANSI: SIL 0265 K08

ISO: SIL 0265 K08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3800138
Delivery date: 3-5 days
$233.28

Details

B-steel shank with coolant hole, C-carbide shank without coolant hole, CB-carbide shank with coolant hole All toolholders are made for 1.5 helix angle For GTGA inserts, use anvil AL 16-0

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Groove Threading, Int.Threading
Package Size 1
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 8
Machine Side Connection Type Boring Bar
Tool Material Steel
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Inter/Extern Internal
Insert Style ISO
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
