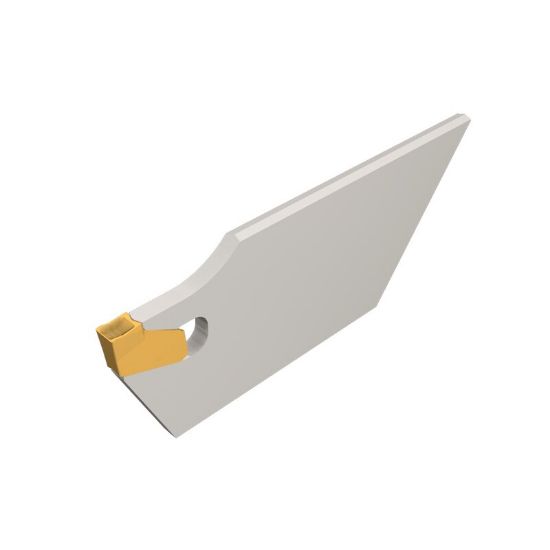

Picture of ISCAR SGFH 26-4M Cut Off,Grooving Blade 1.024 Tool

ISCAR SGFH 26-4M Cut Off,Grooving Blade 1.024 Tool

ANSI: SGFH 26-4M

ISO: SGFH 26-4M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2301078
Delivery date: 3-5 days
$86.40

Important Notes

Grooving depth (Tmax-r) varies in conformance with blade's overhang (f and F1) and it depends on the bore diameter (D).

Details

Internal grooving blades for GHIC...-70 bars.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Grooving, Parting
Insert Application General Purpose
Made In USA No
Insert Type Positive
Package Size 1
Shipping State Texas
Dimensional Specifications
Cutting Width 0.1390 3.53MM
Overall Len 2.4800 62.99MM
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Blade
Machine Side Connection Size 1.0240 26.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style GF,GF,GF
