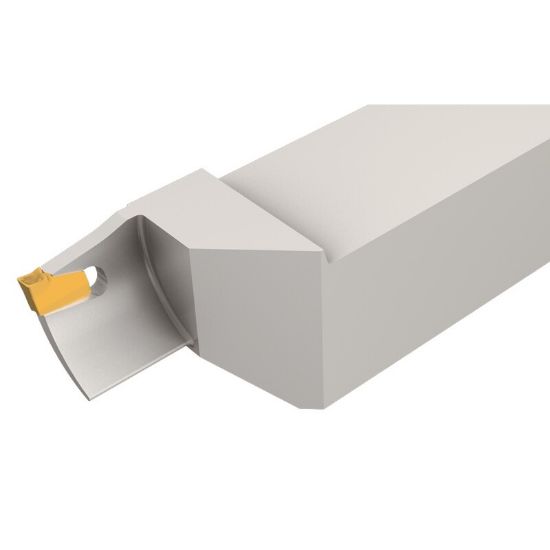

Picture of ISCAR SGFFR 25-50-5 Face Grooving Stick Tool 0.984 Tool

ISCAR SGFFR 25-50-5 Face Grooving Stick Tool 0.984 Tool

ANSI: SGFFR 25-50-5

ISO: SGFFR 25-50-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2300412
Delivery date: 3-5 days
$219.84

Details

SELF-GRIP face grooving integral shank tools.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Grooving
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Texas
Dimensional Specifications
Tool Width 0.9840
Cutting Width 0.1970 5.00MM
Tool Material Steel
Face Groove Max Dia 2.8000
Face Groove Min Dia 1.9700
Shank/Pilot Dia 0.9843 25.00MM
Overall Len 5.9060 150.01MM
Insert Size Ic 5
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Depth Of Cut Max 1.0240
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Inter/Extern External
Insert Style GF
