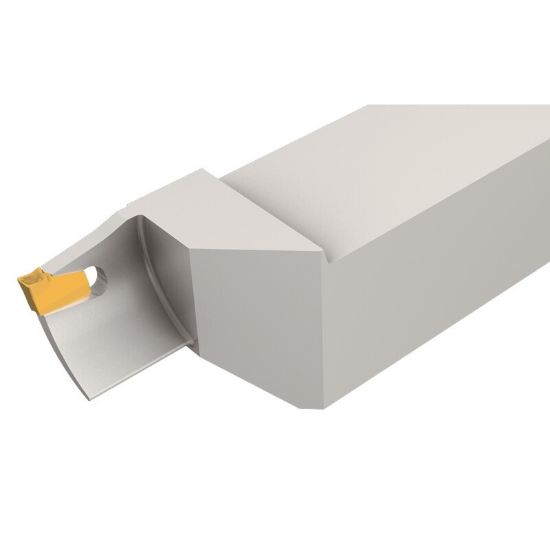

Picture of ISCAR SGFFR 25-100-6 Face Grooving Stick Tool 0.984 Tool

ISCAR SGFFR 25-100-6 Face Grooving Stick Tool 0.984 Tool

ANSI: SGFFR 25-100-6

ISO: SGFFR 25-100-6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2300417
Delivery date: 3-5 days
$220.80

Details

SELF-GRIP face grooving integral shank tools.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Made In USA No
Shipping State Texas
Insert Application General Purpose
Application Face Grooving
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Face Groove Min Dia 3.9400
Face Groove Max Dia 7.0900
Cutting Width 0.2360 5.99MM
Tool Width 0.9840
Insert Size Ic 6
Overall Len 5.9060 150.01MM
Depth Of Cut Max 1.1810
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9843 25.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style GF
Hand R/L Right
Inter/Extern External
