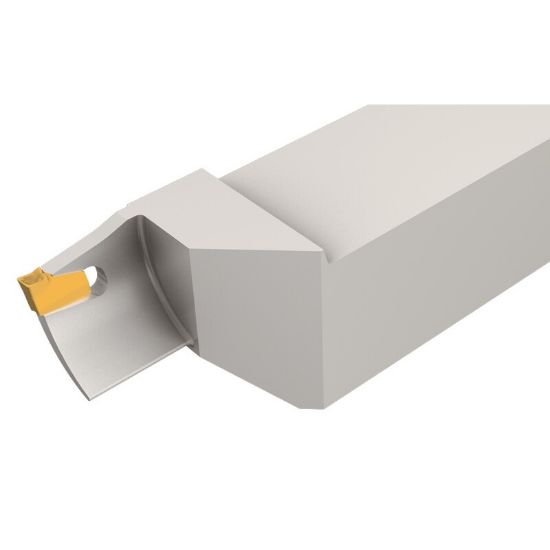

Picture of ISCAR SGFFR 20-75-5 Face Grooving Stick Tool 0.787 Tool

ISCAR SGFFR 20-75-5 Face Grooving Stick Tool 0.787 Tool

ANSI: SGFFR 20-75-5

ISO: SGFFR 20-75-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2300409
Delivery date: 3-5 days
$181.44

Details

SELF-GRIP face grooving integral shank tools.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Application Face Grooving
Insert Application General Purpose
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 1.0240
Overall Len 4.7240 119.99MM
Insert Size Ic 5
Cutting Width 0.1970 5.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Face Groove Min Dia 2.9100
Face Groove Max Dia 5.1200
Tool Width 0.7870
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Other
Insert Style GF
Hand R/L Right
