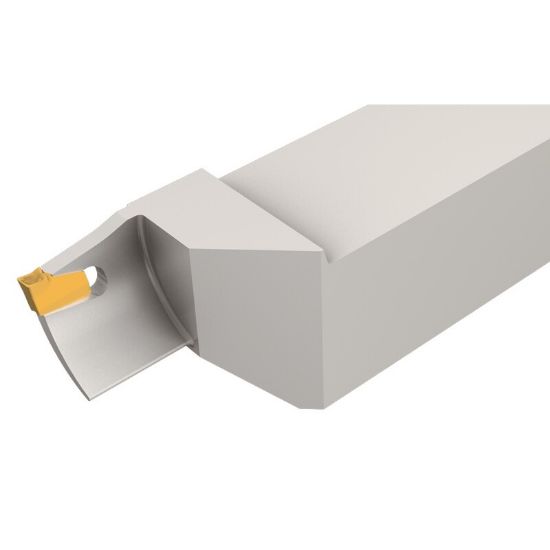

Picture of ISCAR SGFFR 20-60-6 Face Grooving Stick Tool 0.787 Tool

ISCAR SGFFR 20-60-6 Face Grooving Stick Tool 0.787 Tool

ANSI: SGFFR 20-60-6

ISO: SGFFR 20-60-6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2300415
Delivery date: 3-5 days
$209.28

Details

SELF-GRIP face grooving integral shank tools.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Face Grooving
Insert Type Positive
Shipping State Texas
Package Size 1
Dimensional Specifications
Insert Size Ic 6
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.7874 20.00MM
Face Groove Min Dia 2.2400
Tool Width 0.7870
Face Groove Max Dia 2.3600
Overall Len 4.7240 119.99MM
Cutting Width 0.2360 5.99MM
Machine Side Connection Size 0.7874 20.00MM
Depth Of Cut Max 0.9840
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style GF
Hand R/L Right
Inter/Extern External
