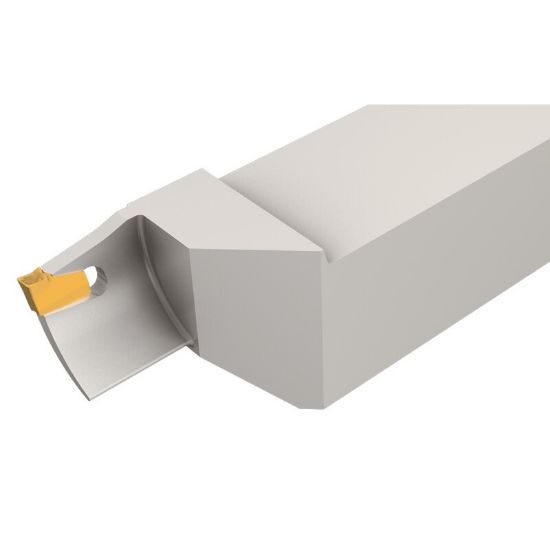

Picture of ISCAR SGFFR 20-40-3 Face Grooving Stick Tool 0.787 Tool

ISCAR SGFFR 20-40-3 Face Grooving Stick Tool 0.787 Tool

ANSI: SGFFR 20-40-3

ISO: SGFFR 20-40-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2300387
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

SELF-GRIP face grooving integral shank tools.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert Type Positive
Insert/Tool Tool
Application Face Grooving
Dimensional Specifications
Face Groove Min Dia 1.5700
Face Groove Max Dia 1.8500
Tool Width 0.7870
Insert Size Ic 3
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Cutting Width 0.1180 3.00MM
Depth Of Cut Max 0.7870
Overall Len 4.7240 119.99MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Other
Insert Style GF
Hand R/L Right
