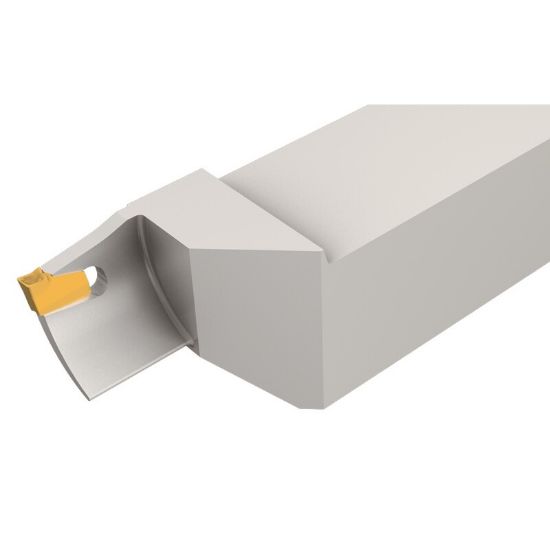

Picture of ISCAR SGFFR 20-25-2 Face Grooving Stick Tool 0.787 Tool

ISCAR SGFFR 20-25-2 Face Grooving Stick Tool 0.787 Tool

ANSI: SGFFR 20-25-2

ISO: SGFFR 20-25-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2300375
Delivery date: 3-5 days
$201.60

Details

SELF-GRIP face grooving integral shank tools.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Made In USA No
Insert Type Positive
Insert/Tool Tool
Application Face Grooving
Shipping State Texas
Dimensional Specifications
Machine Side Connection Size 0.7874 20.00MM
Tool Width 0.7870
Overall Len 4.7240 119.99MM
Face Groove Min Dia 0.9800
Depth Of Cut Max 0.5120
Shank/Pilot Dia 0.7874 20.00MM
Insert Size Ic 2
Cutting Width 0.0830 2.11MM
Face Groove Max Dia 1.1800
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Inter/Extern External
Insert Style GF
Hand R/L Right
