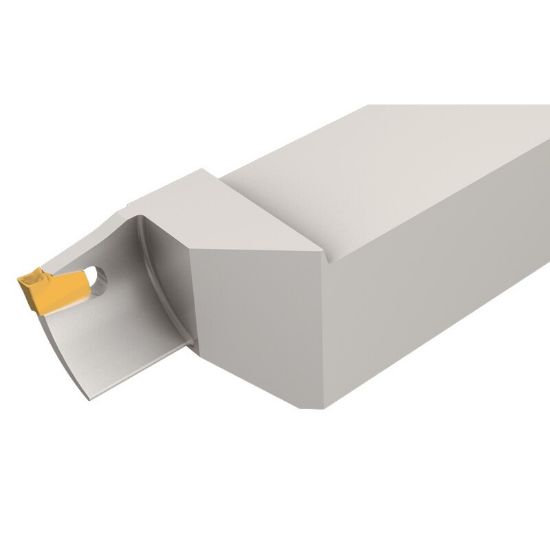

Picture of ISCAR SGFFL 25-55-3 Face Grooving Stick Tool 0.984 Tool

ISCAR SGFFL 25-55-3 Face Grooving Stick Tool 0.984 Tool

ANSI: SGFFL 25-55-3

ISO: SGFFL 25-55-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2300350
Delivery date: 3-5 days
$219.84

Details

SELF-GRIP face grooving integral shank tools.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Positive
Insert/Tool Tool
Application Face Grooving
Shipping State Texas
Package Size 1
Dimensional Specifications
Insert Size Ic 3
Overall Len 5.1180 130.00MM
Depth Of Cut Max 0.9450
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Cutting Width 0.1180 3.00MM
Tool Width 0.9840
Face Groove Min Dia 2.1300
Face Groove Max Dia 2.5600
Shank/Pilot Dia 0.9843 25.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style GF
Hand R/L Left
Inter/Extern External
