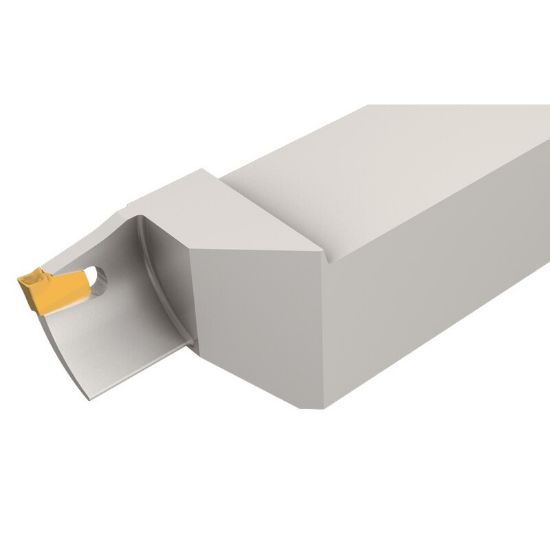

Picture of ISCAR SGFFL 25-45-4 Face Grooving Stick Tool 0.984 Tool

ISCAR SGFFL 25-45-4 Face Grooving Stick Tool 0.984 Tool

ANSI: SGFFL 25-45-4

ISO: SGFFL 25-45-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2300358
Delivery date: 3-5 days
$219.84

Details

SELF-GRIP face grooving integral shank tools.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Grooving
Insert Application General Purpose
Made In USA No
Package Size 1
Insert Type Positive
Shipping State Texas
Dimensional Specifications
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Cutting Width 0.1570 3.99MM
Face Groove Min Dia 1.7300
Depth Of Cut Max 0.9840
Shank/Pilot Dia 0.9843 25.00MM
Overall Len 5.9060 150.01MM
Tool Width 0.9840
Face Groove Max Dia 2.2800
Cutting & Machining Properties
Hand R/L Left
Inter/Extern External
Insert Shape/Cutter Pocket Shape Other
Insert Style GF
