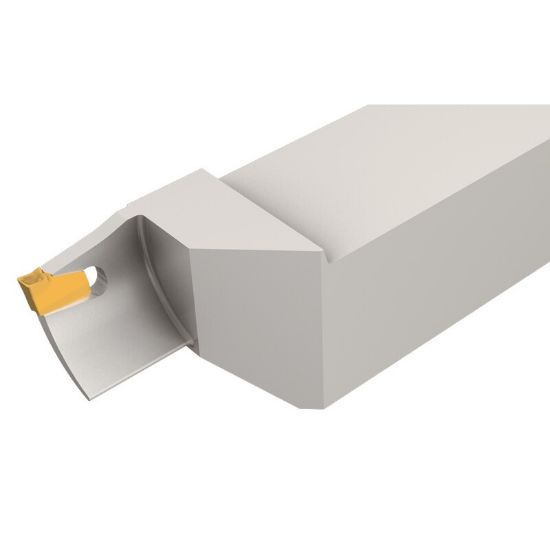

ISCAR SGFFL 20-30-2 Face Grooving Stick Tool 0.787 Tool

ANSI: SGFFL 20-30-2

ISO: SGFFL 20-30-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2300330
Delivery date: 3-5 days
$192.96

Details

SELF-GRIP face grooving integral shank tools.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Face Grooving
Insert Type Positive
Shipping State Texas
Package Size 1
Dimensional Specifications
Tool Width 0.7870
Face Groove Max Dia 1.4200
Machine Side Connection Size 0.7874 20.00MM
Insert Size Ic 2
Cutting Width 0.0830 2.11MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Face Groove Min Dia 1.1400
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 4.7240 119.99MM
Depth Of Cut Max 0.5510
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style GF
Hand R/L Left
Inter/Extern External
