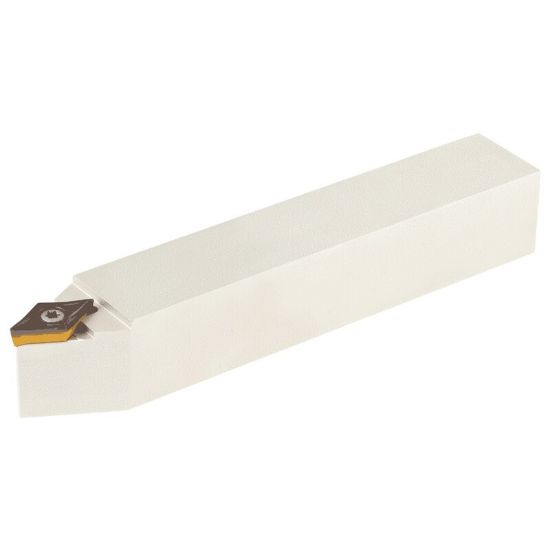

Picture of ISCAR SDNCN 16-13-SL Turning Stick Tool 55.0° Insert 1.000 Square

ISCAR SDNCN 16-13-SL Turning Stick Tool 55.0° Insert 1.000 Square

ANSI: SDNCN 16-13-SL

ISO: SDNCN 16-13-SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603395
Delivery date: 3-5 days
$117.12

Important Notes

Insert clamping torque 27 lbfxin

Details

Screw lock tools carrying the 55° diamond inserts with 7° clearance angle. A long groove on the pocket and a matching ridge at the insert bottom ensure high rigidity in profiling applications.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Texas
Application Ext.Turning
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Clearance Angle 60.0°
Tool Width 1.0000
Insert Size Ic 13
Lead Angle 62.5°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Hand R/L Neutral
Inter/Extern External
