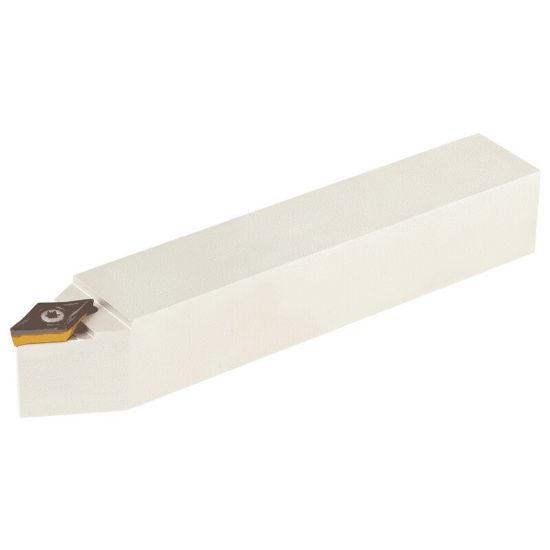

Picture of ISCAR SDNCN 12-13-SL Turning Stick Tool 55.0° Insert 0.750 Square

ISCAR SDNCN 12-13-SL Turning Stick Tool 55.0° Insert 0.750 Square

ANSI: SDNCN 12-13-SL

ISO: SDNCN 12-13-SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603394
Delivery date: 3-5 days
$117.12

Important Notes

Insert clamping torque 27 lbfxin

Details

Screw lock tools carrying the 55° diamond inserts with 7° clearance angle. A long groove on the pocket and a matching ridge at the insert bottom ensure high rigidity in profiling applications.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Package Size 1
Insert/Tool Tool
Insert Type Positive
Application Ext.Turning
Shipping State Texas
Dimensional Specifications
Clearance Angle 60.0°
Lead Angle 62.5°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Insert Size Ic 13
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Inter/Extern External
