  • ISCAR SDK D76-64-31.7FT/A Milling Cutter 90.0°, Corn Cob 3.000 Diameter Face Mill 1.250 3.860 OAL 18 Flute

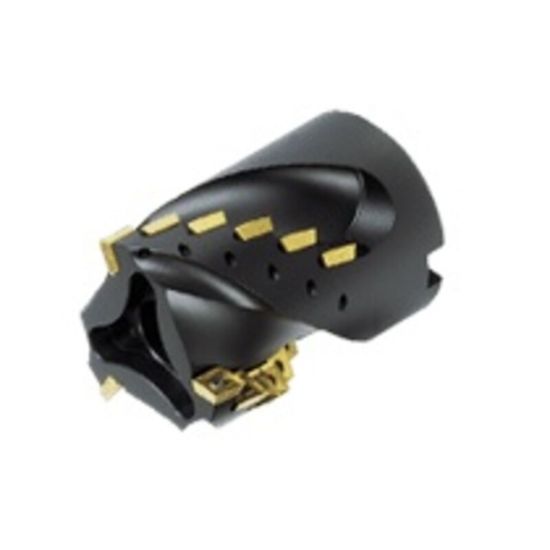

Picture of ISCAR SDK D76-64-31.7FT/A Milling Cutter 90.0°, Corn Cob 3.000 Diameter Face Mill 1.250 3.860 OAL 18 Flute

ISCAR SDK D76-64-31.7FT/A Milling Cutter 90.0°, Corn Cob 3.000 Diameter Face Mill 1.250 3.860 OAL 18 Flute

ANSI: SDK D76-64-31.7FT/A

ISO: SDK D76-64-31.7FT/A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110514
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing
Made In USA No
Application Long Edge Milling, Side Milling
Package Size 1
Insert Type Positive
Shipping State Texas
Dimensional Specifications
Tool Material Steel
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 12
Overall Len 3.8600 98.04MM
Depth Of Cut Max 4.1300
Cutter Dia 3.0000 76.20MM
Flutes/Inserts 18
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Coolant Thru No
Insert Style SD
Fasteners & Connectors
Insert Screw 7000216
