  • ISCAR SDK D2.5-2.6-04-1.0-12-C Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 1.000 3.661 OAL 24 Flute

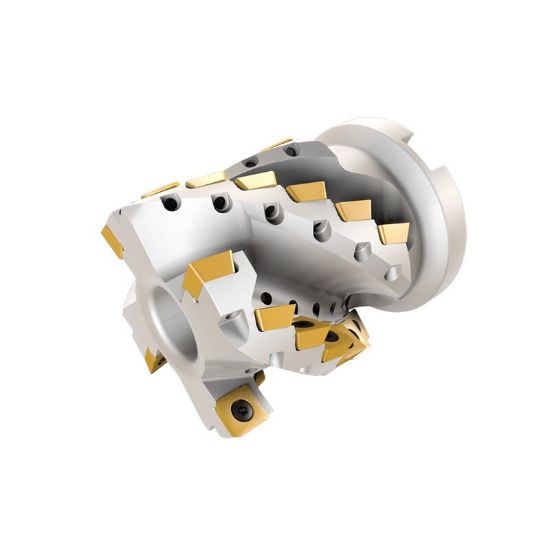

Picture of ISCAR SDK D2.5-2.6-04-1.0-12-C Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 1.000 3.661 OAL 24 Flute

ISCAR SDK D2.5-2.6-04-1.0-12-C Milling Cutter 90.0°, Corn Cob 2.500 Diameter Face Mill 1.000 3.661 OAL 24 Flute

ANSI: SDK D2.5-2.6-04-1.0-12-C

ISO: SDK D2.5-2.6-04-1.0-12-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3323003
Delivery date: 3-5 days
$2,390.40
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Long Edge Milling
Insert Type Positive
Package Size 1
Insert Application Roughing
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Overall Len 3.6610 92.99MM
Flutes/Inserts 24
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 3.8790
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Cutting & Machining Properties
Insert Style SD
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7006978
