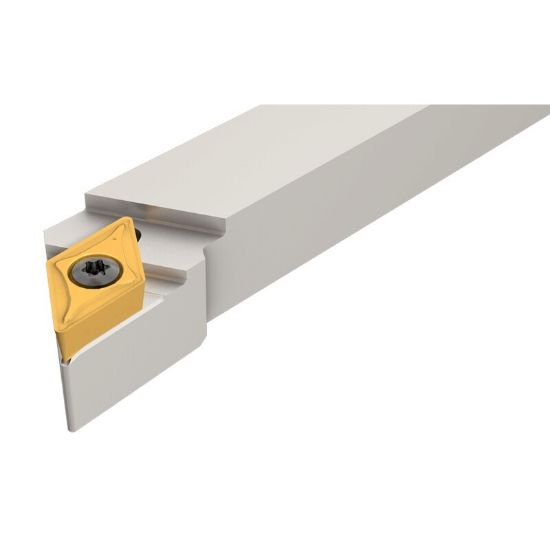

Picture of ISCAR SDJCR 16-13-SL Turning Stick Tool 55.0° Insert 1.000 Square

ISCAR SDJCR 16-13-SL Turning Stick Tool 55.0° Insert 1.000 Square

ANSI: SDJCR 16-13-SL

ISO: SDJCR 16-13-SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603406
Delivery date: 3-5 days
$140.16

Important Notes

Insert clamping torque 27 lbfxin

Details

Screw lock tools carrying the 55° diamond inserts with 7° clearance angle. A long groove on the pocket and a matching ridge at the insert bottom ensure high rigidity in profiling applications.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Dimensional Specifications
Clearance Angle 27.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.0000
Lead Angle 93°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 13
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Hand R/L Right
