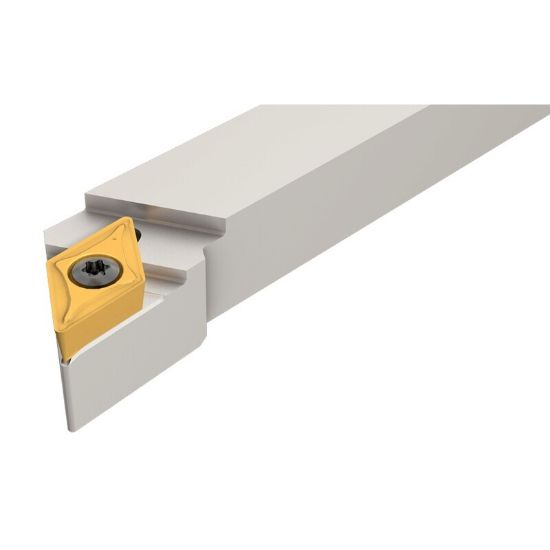

Picture of ISCAR SDJCR 10-13-SL Turning Stick Tool 55.0° Insert 0.625 Square

ISCAR SDJCR 10-13-SL Turning Stick Tool 55.0° Insert 0.625 Square

ANSI: SDJCR 10-13-SL

ISO: SDJCR 10-13-SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603402
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Insert clamping torque 27 lbfxin

Details

Screw lock tools carrying the 55° diamond inserts with 7° clearance angle. A long groove on the pocket and a matching ridge at the insert bottom ensure high rigidity in profiling applications.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Type Positive
Insert Application General Purpose
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Made In USA No
Dimensional Specifications
Lead Angle 93°
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Tool Width 0.6250
Insert Size Ic 13
Machine Side Connection Size 0.6250 15.88MM
Clearance Angle 27.0°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Inter/Extern External
Hand R/L Right
