  • ISCAR S845 F45SX D8.0-12-2.5R16 Milling Cutter 45.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 12 Flute

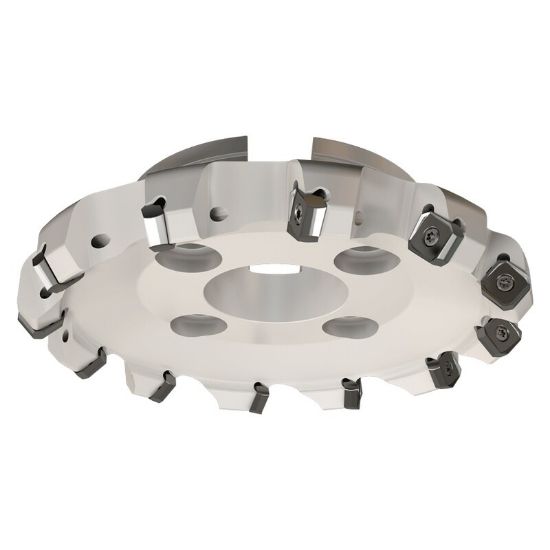

Picture of ISCAR S845 F45SX D8.0-12-2.5R16 Milling Cutter 45.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 12 Flute

ISCAR S845 F45SX D8.0-12-2.5R16 Milling Cutter 45.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 12 Flute

ANSI: S845 F45SX D8.0-12-2.5R16

ISO: S845 F45SX D8.0-12-2.5R16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104787
Delivery date: 3-5 days
$1,929.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing, Finishing
Shipping State Texas
Insert/Tool Tool
Insert Type Negative
Made In USA No
Package Size 1
Application Face Milling
Dimensional Specifications
Cutter Dia 8.0000 203.20MM
Depth Of Cut Max 0.2760
Tool Material Steel
Machine Side Connection Size 2.5000 63.50MM
Flutes/Inserts 12
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 8.0000 203.20MM
Cut Dia Max 8.5800 217.93MM
Overall Len 2.5000 63.50MM
Insert Size Ic 16
Cutting & Machining Properties
Cool Sply Type External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Insert Style SX
Fasteners & Connectors
Insert Screw 7000229
