  • ISCAR S845 F45SX D5.0-8-1.5-R16 Milling Cutter 45.0° 5.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

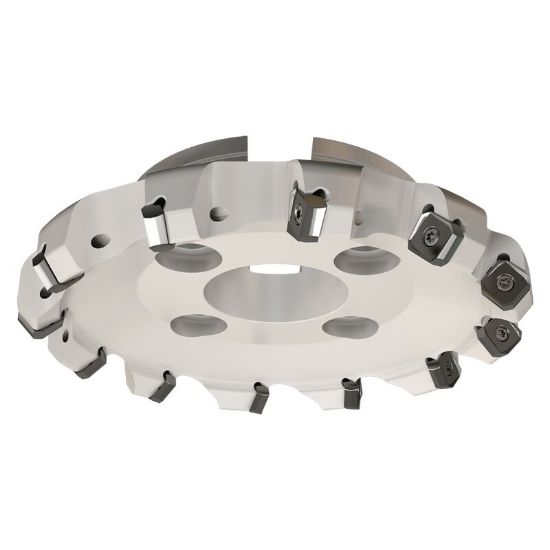

Picture of ISCAR S845 F45SX D5.0-8-1.5-R16 Milling Cutter 45.0° 5.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

ISCAR S845 F45SX D5.0-8-1.5-R16 Milling Cutter 45.0° 5.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

ANSI: S845 F45SX D5.0-8-1.5-R16

ISO: S845 F45SX D5.0-8-1.5-R16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181029
Delivery date: 3-5 days
$1,084.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Roughing, Semi Finishing
Application Face Milling
Package Size 1
Shipping State Texas
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 5.0000 127.00MM
Machine Side Connection Size 1.5000 38.10MM
Insert Size Ic 16
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Depth Of Cut Max 0.2760
Tool Material Steel
Cut Dia Min 5.0000 127.00MM
Cut Dia Max 5.5800 141.73MM
Flutes/Inserts 8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SX
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7090008
