  • ISCAR S845 F45SX D3.0-6-1.0-R16 Milling Cutter 45.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 6 Flute

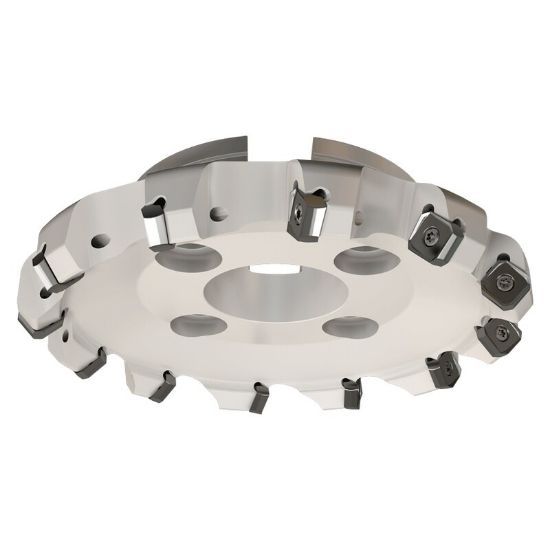

Picture of ISCAR S845 F45SX D3.0-6-1.0-R16 Milling Cutter 45.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ISCAR S845 F45SX D3.0-6-1.0-R16 Milling Cutter 45.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ANSI: S845 F45SX D3.0-6-1.0-R16

ISO: S845 F45SX D3.0-6-1.0-R16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181005
Delivery date: 3-5 days
$735.36

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Shipping State Texas
Application Face Milling
Package Size 1
Insert Type Negative
Dimensional Specifications
Depth Of Cut Max 0.2760
Overall Len 1.7500 44.45MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Cut Dia Min 3.0000 76.20MM
Tool Material Steel
Cutter Dia 3.0000 76.20MM
Cut Dia Max 3.5800 90.93MM
Cutting & Machining Properties
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Square
Insert Style SX
Fasteners & Connectors
Insert Screw 7002791
