  • ISCAR S845 F45SX D2.5-7-1.0-R16 Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 7 Flute

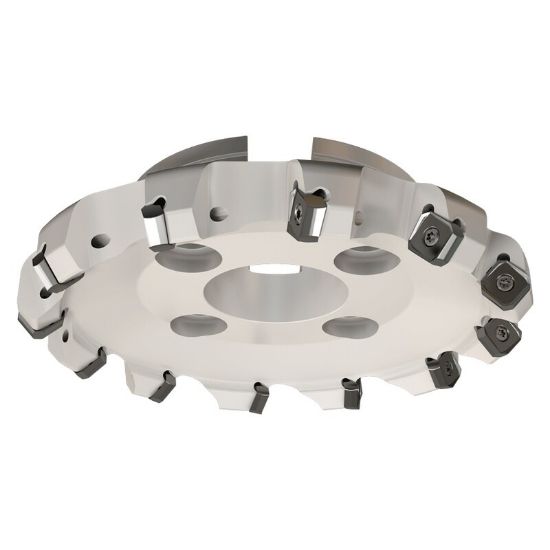

Picture of ISCAR S845 F45SX D2.5-7-1.0-R16 Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 7 Flute

ISCAR S845 F45SX D2.5-7-1.0-R16 Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 7 Flute

ANSI: S845 F45SX D2.5-7-1.0-R16

ISO: S845 F45SX D2.5-7-1.0-R16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105061
Delivery date: 3-5 days
$741.12

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Finishing, Semi Finishing, Roughing
Application Face Milling
Package Size 1
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.2760
Tool Material Steel
Insert Size Ic 16
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 7
Cutter Dia 2.5000 63.50MM - 2-1/2
Overall Len 1.7500 44.45MM
Cut Dia Max 3.1270 79.43MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SX
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 4305312
