  • ISCAR S845 F45SX D2.5-5-1.0-R16 Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

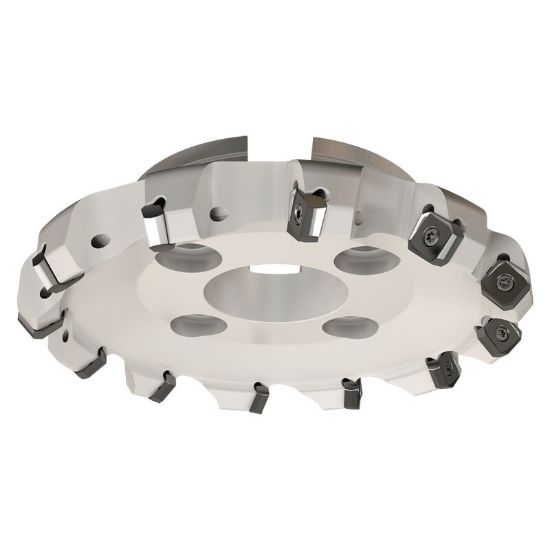

Picture of ISCAR S845 F45SX D2.5-5-1.0-R16 Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

ISCAR S845 F45SX D2.5-5-1.0-R16 Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

ANSI: S845 F45SX D2.5-5-1.0-R16

ISO: S845 F45SX D2.5-5-1.0-R16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104580
Delivery date: 3-5 days
$678.72

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Shipping State Texas
Dimensional Specifications
Cut Dia Min 2.5000 63.50MM - 2-1/2
Cutter Dia 2.5000 63.50MM - 2-1/2
Flutes/Inserts 5
Cut Dia Max 3.0800 78.23MM
Overall Len 1.7500 44.45MM
Depth Of Cut Max 0.2760
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Square
Insert Style SX
Fasteners & Connectors
Insert Screw 7000219
