  • ISCAR S845 F45SX D2.0-5-.75-R16 Milling Cutter 45.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 5 Flute

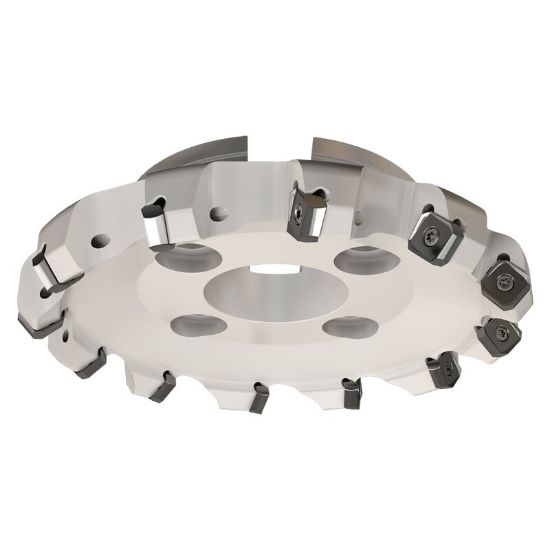

Picture of ISCAR S845 F45SX D2.0-5-.75-R16 Milling Cutter 45.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 5 Flute

ISCAR S845 F45SX D2.0-5-.75-R16 Milling Cutter 45.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 5 Flute

ANSI: S845 F45SX D2.0-5-.75-R16

ISO: S845 F45SX D2.0-5-.75-R16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105060
Delivery date: 3-5 days
$590.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Insert Type Negative
Made In USA No
Insert Application Finishing, Roughing, Semi Finishing
Application Face Milling
Package Size 1
Dimensional Specifications
Insert Size Ic 16
Cutter Dia 2.0000 50.80MM
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.2760
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 2.5500 64.77MM
Overall Len 1.7500 44.45MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SX
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 4305312
