  • ISCAR S845 F45SX D2.0-4-.75-R16 Milling Cutter 45.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 4 Flute

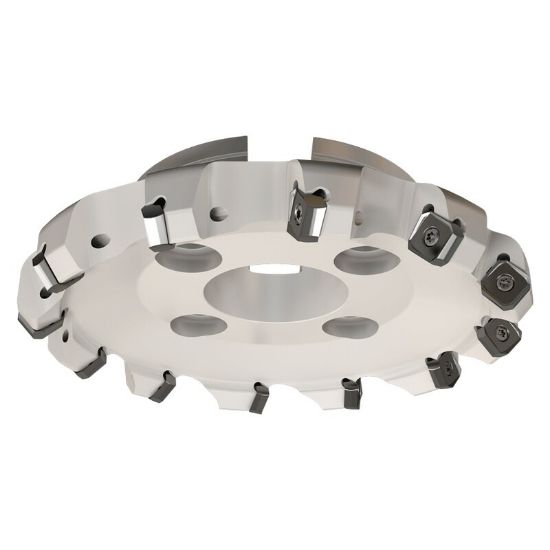

Picture of ISCAR S845 F45SX D2.0-4-.75-R16 Milling Cutter 45.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 4 Flute

ISCAR S845 F45SX D2.0-4-.75-R16 Milling Cutter 45.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 4 Flute

ANSI: S845 F45SX D2.0-4-.75-R16

ISO: S845 F45SX D2.0-4-.75-R16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181207
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Shipping State Texas
Package Size 1
Application Face Milling
Insert/Tool Tool
Insert Type Negative
Made In USA No
Dimensional Specifications
Flutes/Inserts 4
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.2760
Cut Dia Max 2.5800 65.53MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 16
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.7500 44.45MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Insert Style SX
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7006316
