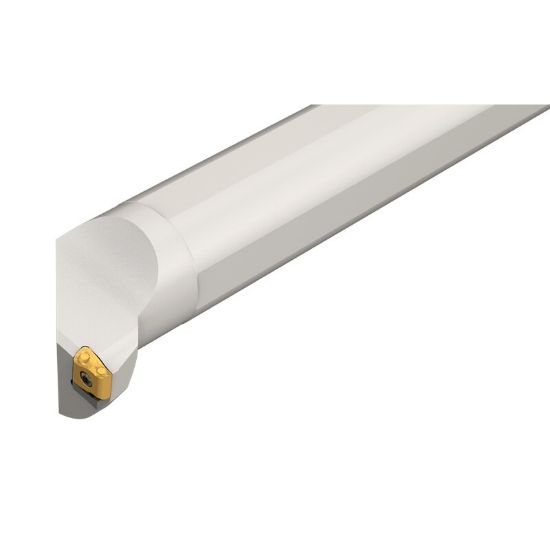

Picture of ISCAR S-SLANR 32-15 TANG Turning Boring Bar On Edge Insert 2.000 Boring Bar

ISCAR S-SLANR 32-15 TANG Turning Boring Bar On Edge Insert 2.000 Boring Bar

ANSI: S-SLANR 32-15 TANG

ISO: S-SLANR 32-15 TANG

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3602290
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Right-hand inserts for left-hand bars. Left-hand inserts for right-hand bars.

Details

Boring bars carrying the LNMX tangentially screw clamped inserts with 4 cutting edges for high metal removal rates.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Texas
Application Int.Turning
Dimensional Specifications
Shank/Pilot Dia 2.0000 50.80MM - 2
Insert Size Ic 15
Machine Side Connection Type Boring Bar
Tool Material Steel
Lead Angle 93°
Machine Side Connection Size 2.0000 50.80MM
Overall Len 16.0000 406.40MM
Cutting & Machining Properties
Insert Style LN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Rectagonal
Inter/Extern Internal
