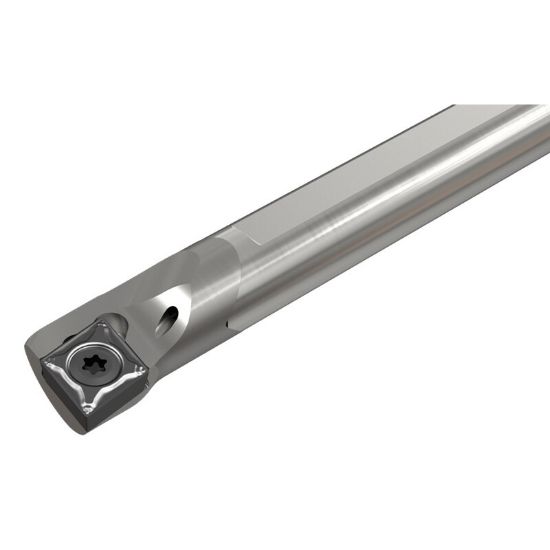

Picture of ISCAR S-SCLCR 12-3 Turning Boring Bar 80.0° Insert 0.750 Boring Bar

ISCAR S-SCLCR 12-3 Turning Boring Bar 80.0° Insert 0.750 Boring Bar

ANSI: S-SCLCR 12-3

ISO: S-SCLCR 12-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3600831
Delivery date: 3-5 days
$213.12

Important Notes

S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole

Details

Screw lock boring bars for 80° rhombic inserts with 7° clearance

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Application Ext.Turning
Insert/Tool Tool
Shipping State Texas
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Overall Len 10.0000 254.00MM
Insert Size Ic 09 "32"
Machine Side Connection Type Boring Bar
Lead Angle 95°
Cutting & Machining Properties
Hand R/L Right
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
Inter/Extern Internal
