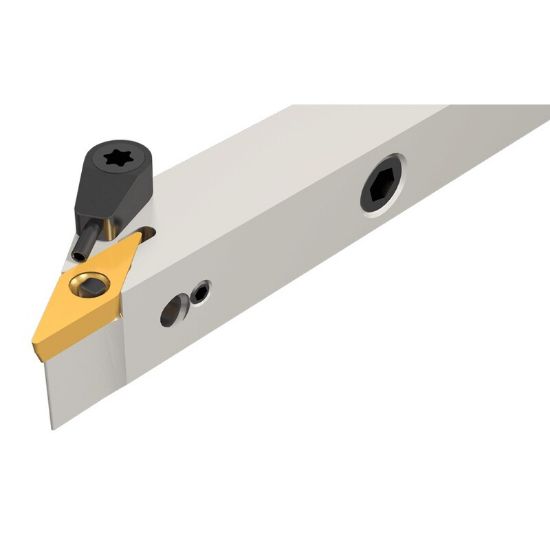

Picture of ISCAR PVACR 12-2S-JHP Turning Stick Tool 35.0° Insert 0.750 Square

ISCAR PVACR 12-2S-JHP Turning Stick Tool 35.0° Insert 0.750 Square

ANSI: PVACR 12-2S-JHP

ISO: PVACR 12-2S-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3605918
Delivery date: 3-5 days
$289.92

Details

Lever lock tools with channels for high pressure coolant carrying the 35° positive rhombic inserts. The tools were designed for Swiss automatic machines.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Made In USA No
Shipping State Texas
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 91°
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 0.7500
Insert Size Ic 11 "21"
Machine Side Connection Size 0.7500 19.05MM
Clearance Angle 52.0°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style VC
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
