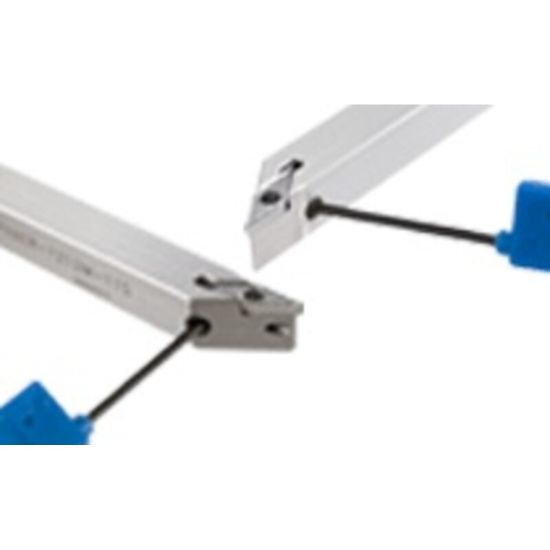

Picture of ISCAR PVACR 10-2S Turning Stick Tool 35.0° Insert 0.625 Square

ISCAR PVACR 10-2S Turning Stick Tool 35.0° Insert 0.625 Square

ANSI: PVACR 10-2S

ISO: PVACR 10-2S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3602432
Delivery date: 3-5 days
$145.92

Important Notes

The clamping screw may by transferred to the opposite side if needed

Details

Side lever lock tools for 35° positive rhombic inserts for Swiss automatic machines.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Insert Type Positive
Application Ext.Turning
Package Size 1
Shipping State Texas
Dimensional Specifications
Lead Angle 91°
Insert Size Ic 11 "21"
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Tool Width 0.6250
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 52.0°
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Hand R/L Right
Insert Style VC
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
