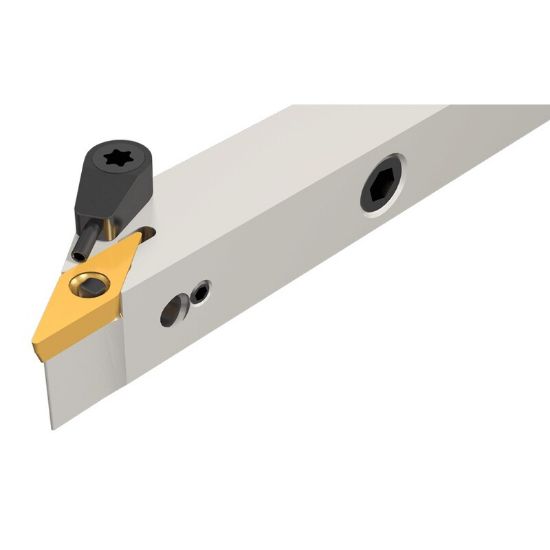

Picture of ISCAR PVACR 08-2S-JHP Turning Stick Tool 35.0° Insert 0.500 Square

ISCAR PVACR 08-2S-JHP Turning Stick Tool 35.0° Insert 0.500 Square

ANSI: PVACR 08-2S-JHP

ISO: PVACR 08-2S-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3606733
Delivery date: 3-5 days
$359.04

Details

Lever lock tools with channels for high pressure coolant carrying the 35° positive rhombic inserts. The tools were designed for Swiss automatic machines.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Type Positive
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 11 "21"
Clearance Angle 52.0°
Tool Width 0.5000
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Lead Angle 91°
Cutting & Machining Properties
Hand R/L Right
Insert Style VC
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
