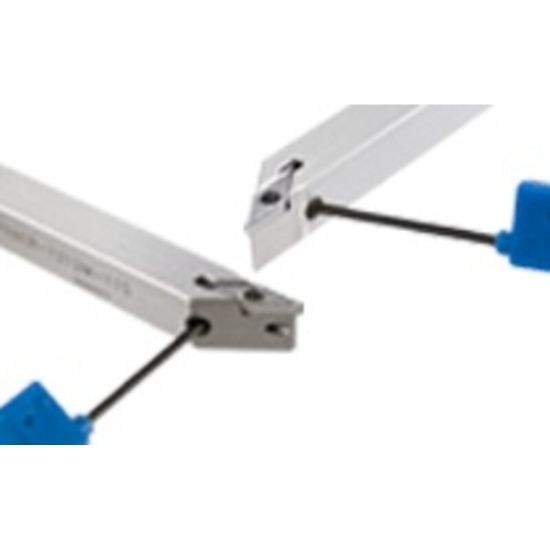

Picture of ISCAR PVACR 06-2S Turning Stick Tool 35.0° Insert 0.375 Square

ISCAR PVACR 06-2S Turning Stick Tool 35.0° Insert 0.375 Square

ANSI: PVACR 06-2S

ISO: PVACR 06-2S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3602430
Delivery date: 3-5 days
$145.92

Important Notes

The clamping screw may by transferred to the opposite side if needed

Details

Side lever lock tools for 35° positive rhombic inserts for Swiss automatic machines.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Clearance Angle 52.0°
Insert Size Ic 11 "21"
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 91°
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Machine Side Connection Size 0.3750 9.53MM
Tool Width 0.3750
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Right
Insert Style VC
