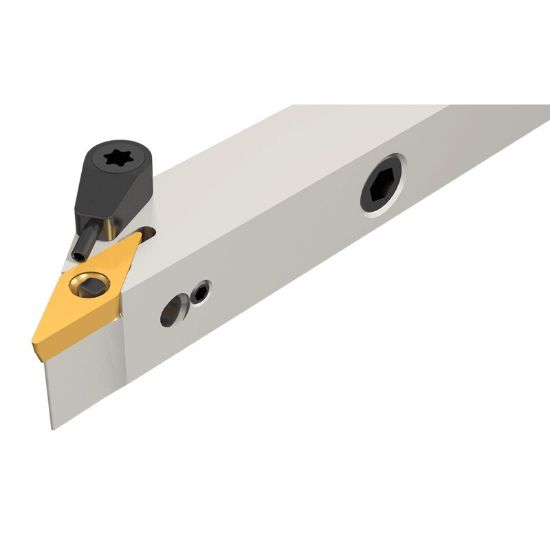

Picture of ISCAR PVACL 08-2S-JHP Turning Stick Tool 35.0° Insert 0.500 Square

ISCAR PVACL 08-2S-JHP Turning Stick Tool 35.0° Insert 0.500 Square

ANSI: PVACL 08-2S-JHP

ISO: PVACL 08-2S-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603368
Delivery date: 3-5 days
$359.04

Details

Lever lock tools with channels for high pressure coolant carrying the 35° positive rhombic inserts. The tools were designed for Swiss automatic machines.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Ext.Turning
Package Size 1
Insert Type Positive
Shipping State Texas
Insert/Tool Tool
Insert Application General Purpose
Dimensional Specifications
Insert Size Ic 11 "21"
Clearance Angle 52.0°
Machine Side Connection Size 0.5000 12.70MM
Tool Width 0.5000
Lead Angle 91°
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VC
Hand R/L Left
