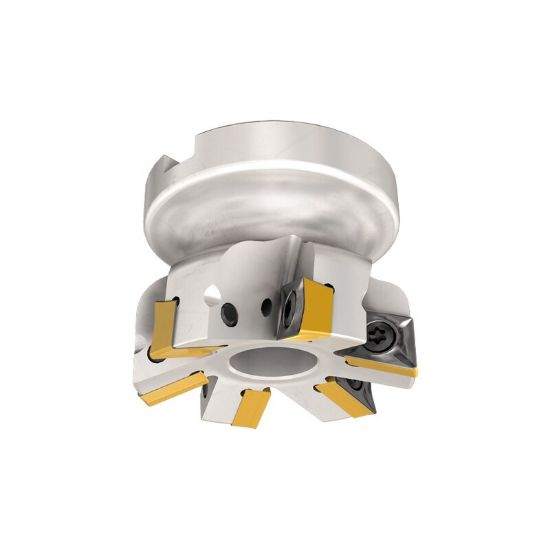

Picture of ISCAR PLX D2.50-1.00-12* Milling Cutter 2.500 Diameter Face Mill 1.000 1.750 OAL 7 Flute

ISCAR PLX D2.50-1.00-12* Milling Cutter 2.500 Diameter Face Mill 1.000 1.750 OAL 7 Flute

ANSI: PLX D2.50-1.00-12*

ISO: PLX D2.50-1.00-12*

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103131
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Type Positive
Application Plunge Milling
Shipping State Texas
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.1570
Flutes/Inserts 7
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Overall Len 1.7500 44.45MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 7000212
