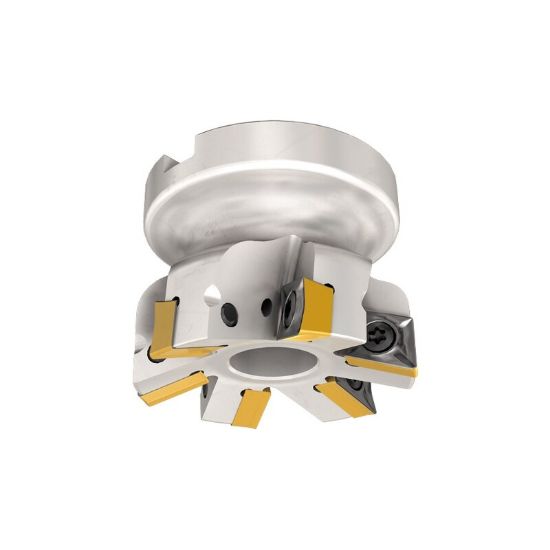

Picture of ISCAR PLX D2.00-0.75-12 Milling Cutter 2.000 Diameter Face Mill 0.875 1.570 OAL 6 Flute

ISCAR PLX D2.00-0.75-12 Milling Cutter 2.000 Diameter Face Mill 0.875 1.570 OAL 6 Flute

ANSI: PLX D2.00-0.75-12

ISO: PLX D2.00-0.75-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103130
Delivery date: 3-5 days
$549.12

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Plunge Milling
Package Size 1
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.3540
Cut Dia Min 2.0000 50.80MM
Machine Side Connection Size 0.8750 22.23MM
Overall Len 1.5700 39.88MM
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 6
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 4304943
