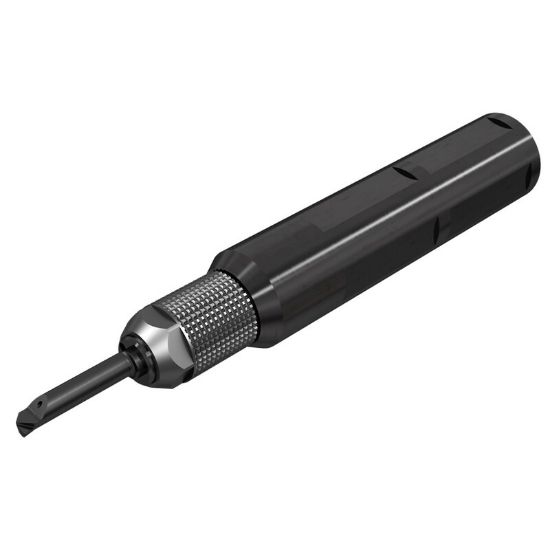

Picture of ISCAR PICCO ACE 25.4-7N Solid Tool Solid Tool Swiss Insert 1.000 Boring Bar

ISCAR PICCO ACE 25.4-7N Solid Tool Solid Tool Swiss Insert 1.000 Boring Bar

ANSI: PICCO ACE 25.4-7N

ISO: PICCO ACE 25.4-7N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3373339
Delivery date: 3-5 days
$289.92

Important Notes

Holders are suitable for right and left-hand PICCO...-N type solid tools only

Details

Holders for PICCO-JETCUT inserts, with internal coolant channels, featuring extremely high clamping repeatability, superb rigidity - achieved due to the advanced clamping mechanism, fast insert indexing and clamping orientation flexibility.

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Solid Holder, Swiss
Made In USA No
Insert/Tool Tool
Insert Application Finishing, Semi Finishing
Shipping State Texas
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Boring Bar
Tool Material Steel
Cutting & Machining Properties
Inter/Extern Internal
