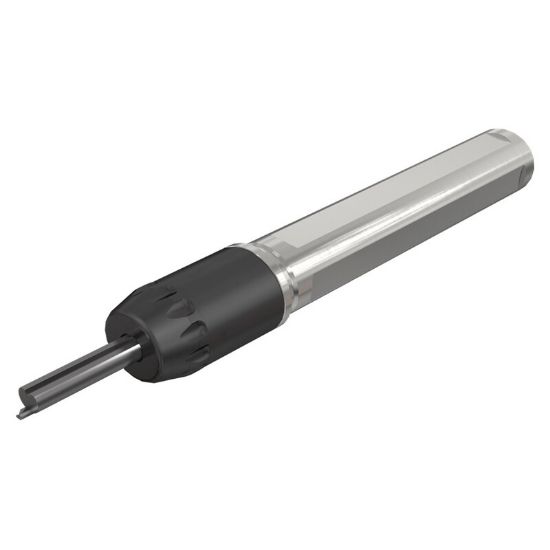

Picture of ISCAR PICCO ACE 15.9-5 Grooving,Groove Turning,Groove Threading Boring Bar 0.625 Tool

ISCAR PICCO ACE 15.9-5 Grooving,Groove Turning,Groove Threading Boring Bar 0.625 Tool

ANSI: PICCO ACE 15.9-5

ISO: PICCO ACE 15.9-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2801821
Delivery date: 3-5 days
$184.32

Details

Holders for PICCOCUT inserts featuring extremely high clamping repeatability, superb rigidity - achieved due to the advanced clamping mechanism, fast insert indexing and clamping orientation flexibility.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Insert Application General Purpose
Insert/Tool Tool
Application Int.Grooving, Int.Groove Turning, Int.Threading
Shipping State Texas
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Machine Side Connection Type Boring Bar
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 3.3460 84.99MM
Cutting & Machining Properties
Inter/Extern Internal
