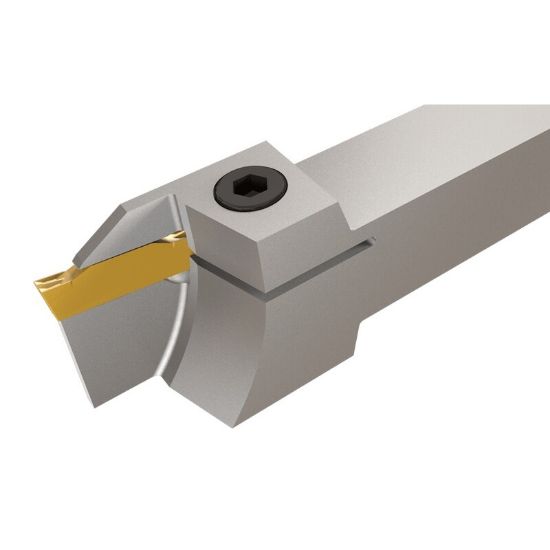

Picture of ISCAR PHGR 25.4-2.4 Cut Off,Grooving Stick Tool 1.000 Tool

ISCAR PHGR 25.4-2.4 Cut Off,Grooving Stick Tool 1.000 Tool

ANSI: PHGR 25.4-2.4

ISO: PHGR 25.4-2.4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800749
Delivery date: 3-5 days
$181.44

Details

Holders for external deep grooving and turning, up to .67".

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Positive
Package Size 1
Application Ext.Groove Turning, Ext.Grooving, Parting
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.6700
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Insert Size Ic 2.4
Cutting Width 0.0940 2.39MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GD
Inter/Extern External
