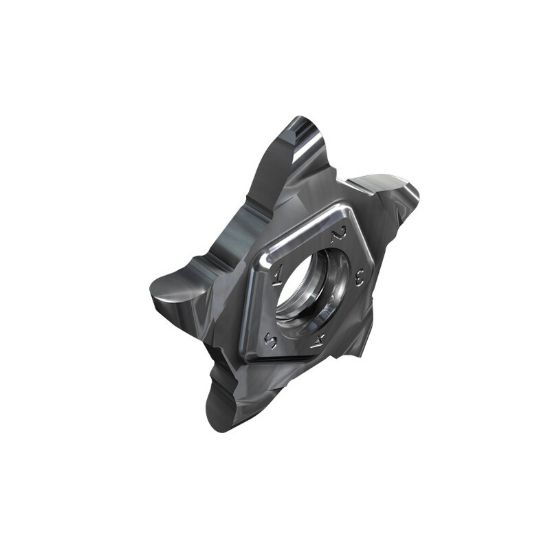

Picture of ISCAR PENTA 24N300PF150 IC30N Cut Off,Grooving Insert

ISCAR PENTA 24N300PF150 IC30N Cut Off,Grooving Insert

ANSI: PENTA 24N300PF150 IC30N

ISO: PENTA 24N300PF150 IC30N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3334959
Delivery date: 3-5 days
$43.46

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Full Radius Pentagonal Inserts with a High Positive Flat Rake for Parting and Precision Grooving

File Downloads

DXFSTPSTPL

Grade and Coating Description

Cermet grade. Provides excellent resistance to wear and plastic deformation even at high cutting speeds and medium feeds. Useful for semi finishing and finishing.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Grade IC30N
Insert/Tool Insert
Application Grooving & Parting Insert, Swiss
Shipping State Texas
Insert Type Positive
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Insert Size Ic 24
Cut Rating <48HRC Steel, Stainless Steel
Cutting Width 0.0980 2.49MM
Depth Of Cut Max 0.2440
Corner Radius 0.0490 1.24MM
Cutting & Machining Properties
Insert Style PE
Insert Shape/Cutter Pocket Shape Pentagonal
Cutting Edge Mat Cermet
