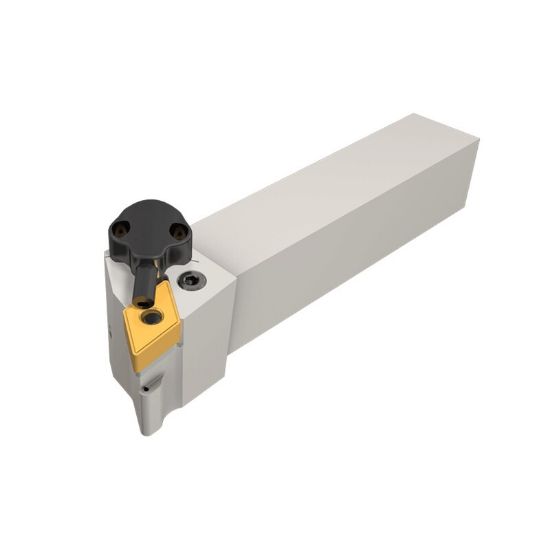

Picture of ISCAR PDJNR 16-4-JHP Turning Stick Tool 55.0° Insert 1.000 Square

ISCAR PDJNR 16-4-JHP Turning Stick Tool 55.0° Insert 1.000 Square

ANSI: PDJNR 16-4-JHP

ISO: PDJNR 16-4-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603202
Delivery date: 3-5 days
$288.00

Important Notes

For DN.. 44. inserts use TDN 422 seat (ordered separately)

Details

Lever lock tools with channels for high pressure coolant, carrying the 55° negative rhombic inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Clearance Angle 27.0°
Lead Angle 93°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 12 "43"
Tool Width 1.0000
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Inter/Extern External
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
