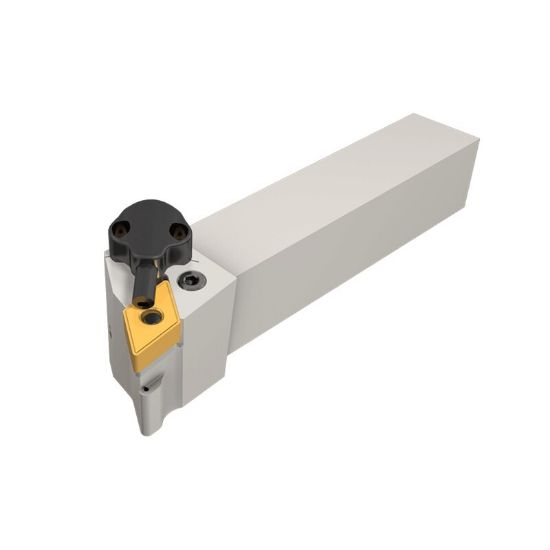

Picture of ISCAR PDJNL 20-4-JHP Turning Stick Tool 55.0° Insert 1.250 Square

ISCAR PDJNL 20-4-JHP Turning Stick Tool 55.0° Insert 1.250 Square

ANSI: PDJNL 20-4-JHP

ISO: PDJNL 20-4-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603498
Delivery date: 3-5 days
$288.00

Important Notes

For DN.. 44. inserts use TDN 422 seat (ordered separately)

Details

Lever lock tools with channels for high pressure coolant, carrying the 55° negative rhombic inserts.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Lead Angle 93°
Tool Width 1.2500
Insert Size Ic 12 "43"
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Clearance Angle 27.0°
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Left
Insert Style DN
