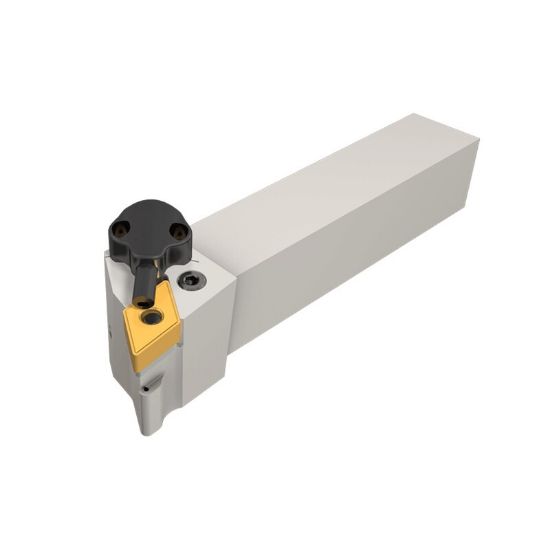

Picture of ISCAR PDJNL 16-4-JHP Turning Stick Tool 55.0° Insert 1.000 Square

ISCAR PDJNL 16-4-JHP Turning Stick Tool 55.0° Insert 1.000 Square

ANSI: PDJNL 16-4-JHP

ISO: PDJNL 16-4-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603316
Delivery date: 3-5 days
$288.00

Important Notes

For DN.. 44. inserts use TDN 422 seat (ordered separately)

Details

Lever lock tools with channels for high pressure coolant, carrying the 55° negative rhombic inserts.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Lead Angle 93°
Tool Width 1.0000
Insert Size Ic 12 "43"
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 27.0°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Hand R/L Left
Insert Style DN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
