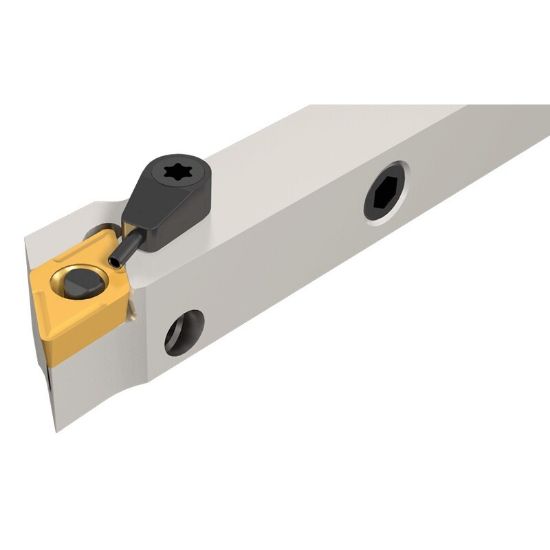

Picture of ISCAR PDJCL 08-3S-JHP Turning Stick Tool 55.0° Insert 0.500 Square

ISCAR PDJCL 08-3S-JHP Turning Stick Tool 55.0° Insert 0.500 Square

ANSI: PDJCL 08-3S-JHP

ISO: PDJCL 08-3S-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603372
Delivery date: 3-5 days
$338.88

Details

Lever lock tools with channels for high pressure coolant for 55° positive rhombic inserts. The tools were designed for Swiss automatic machines.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Made In USA No
Shipping State Texas
Insert Application General Purpose
Application Swiss, Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Tool Width 0.5000
Clearance Angle 27.0°
Lead Angle 93°
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Insert Size Ic 11 "32"
Machine Side Connection Size 0.5000 12.70MM
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape 55.0°
Inter/Extern External
Insert Style DC
