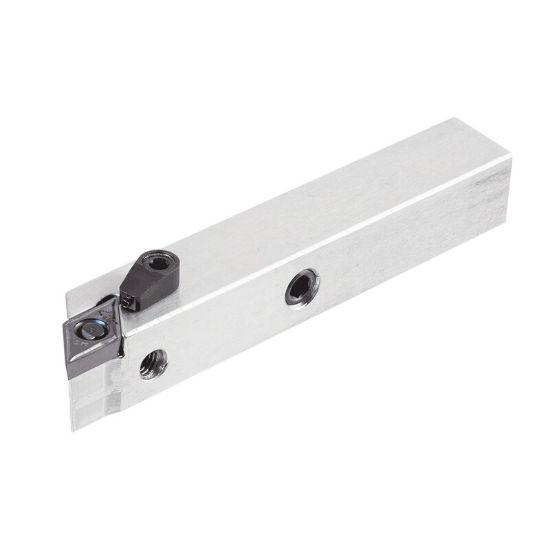

Picture of ISCAR PDACR 10-3S-JHP Turning Stick Tool 55.0° Insert 0.625 Square

ISCAR PDACR 10-3S-JHP Turning Stick Tool 55.0° Insert 0.625 Square

ANSI: PDACR 10-3S-JHP

ISO: PDACR 10-3S-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603361
Delivery date: 3-5 days
$338.88

Details

Lever lock tools with channels for high pressure coolant carrying the 55° positive rhombic inserts. The tools were designed for Swiss automatic machines.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 11 "32"
Machine Side Connection Size 0.6250 15.88MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 29.0°
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Tool Width 0.6250
Lead Angle 91°
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Right
Insert Style DC
