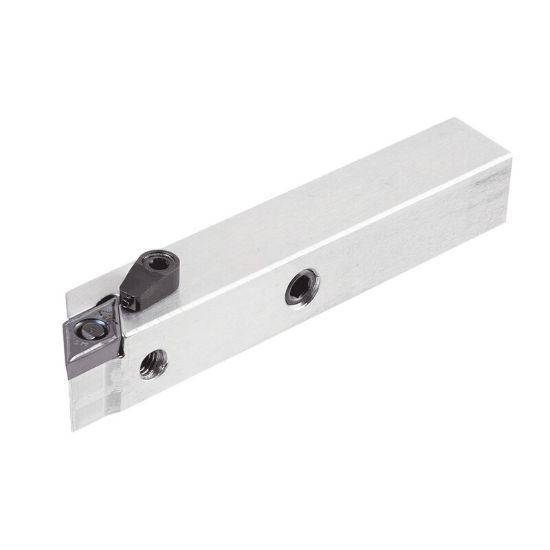

Picture of ISCAR PDACL 10-3S-JHP Turning Stick Tool 55.0° Insert 0.625 Square

ISCAR PDACL 10-3S-JHP Turning Stick Tool 55.0° Insert 0.625 Square

ANSI: PDACL 10-3S-JHP

ISO: PDACL 10-3S-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603367
Delivery date: 3-5 days
$338.88

Details

Lever lock tools with channels for high pressure coolant carrying the 55° positive rhombic inserts. The tools were designed for Swiss automatic machines.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Shipping State Texas
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Tool Width 0.6250
Lead Angle 91°
Insert Size Ic 11 "32"
Machine Side Connection Size 0.6250 15.88MM
Clearance Angle 29.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Hand R/L Left
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
