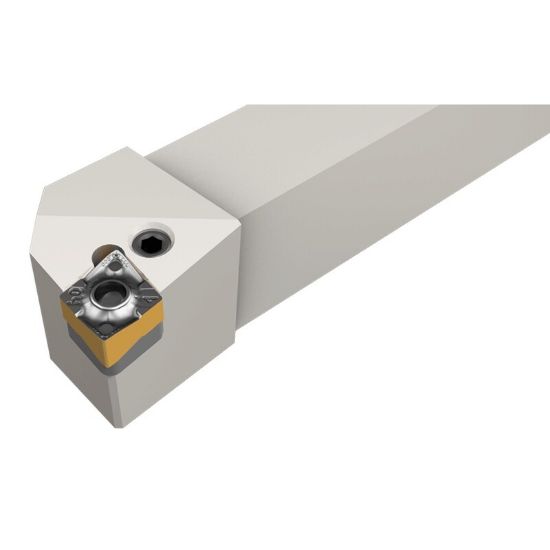

Picture of ISCAR PCLNR 20-5X Turning Stick Tool 80.0° Insert 1.250 Square

ISCAR PCLNR 20-5X Turning Stick Tool 80.0° Insert 1.250 Square

ANSI: PCLNR 20-5X

ISO: PCLNR 20-5X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3606675
Delivery date: 3-5 days
$142.08

Important Notes

Supplied with TCX 3 seat for CNMX 34. inserts and TCN 323 seat for CNMG 33. inserts, TCX 4 seat for CNMX 45. inserts and TCN 443 seat for CNMG 43. inserts, TCX 5 seat for CNMX 55. inserts and TCN 53 seat for CNMG 54. inserts.

Details

Lever lock tools carrying the CNMX/CNMG 80° rhombic inserts.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Insert Size Ic 16 "55"
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Lead Angle 95°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Tool Width 1.2500
Cutting & Machining Properties
Insert Style CN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
