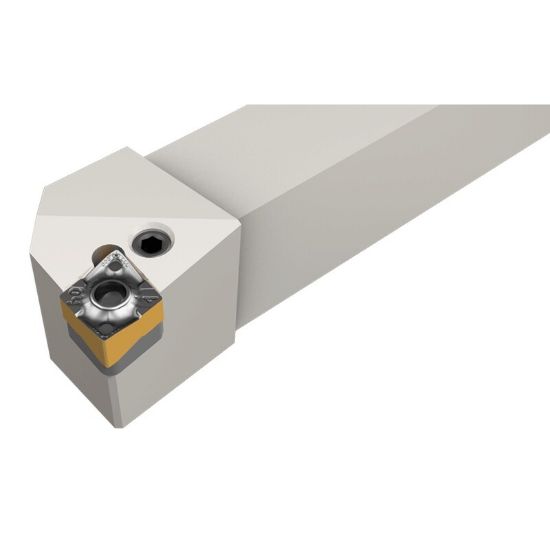

Picture of ISCAR PCLNL 20-5X Turning Stick Tool 80.0° Insert 1.250 Square

ISCAR PCLNL 20-5X Turning Stick Tool 80.0° Insert 1.250 Square

ANSI: PCLNL 20-5X

ISO: PCLNL 20-5X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3606674
Delivery date: 3-5 days
$142.08

Important Notes

Supplied with TCX 3 seat for CNMX 34. inserts and TCN 323 seat for CNMG 33. inserts, TCX 4 seat for CNMX 45. inserts and TCN 443 seat for CNMG 43. inserts, TCX 5 seat for CNMX 55. inserts and TCN 53 seat for CNMG 54. inserts.

Details

Lever lock tools carrying the CNMX/CNMG 80° rhombic inserts.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Ext.Turning
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 16 "55"
Lead Angle 95°
Tool Width 1.2500
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Style CN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
